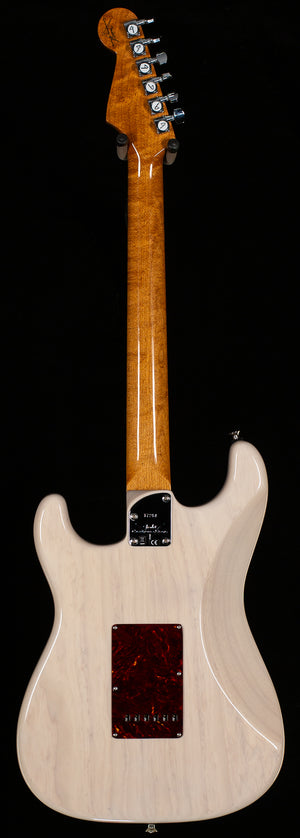

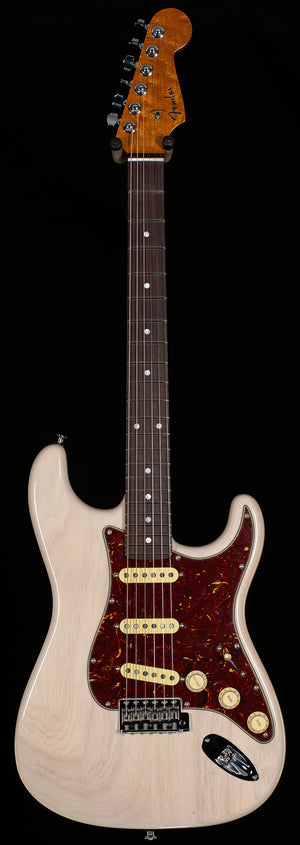

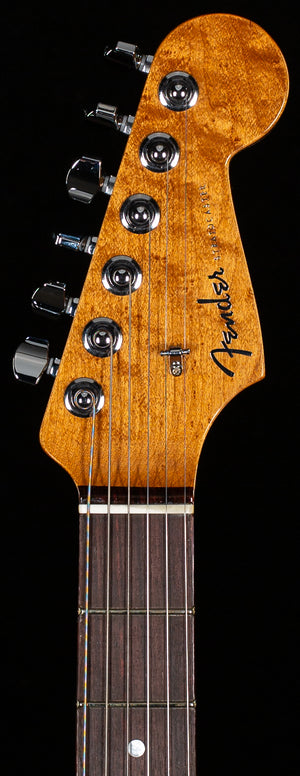

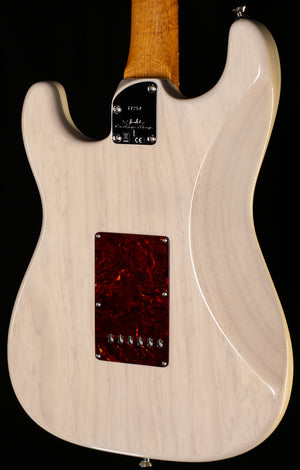

Transcending classic design elements with eye-catching appeal, the American Custom Stratocaster draws the most discerning players as the embodiment of elegance and perfectly alluring playability. An NOS lacquer finish lets the two-piece select ash body breath and resonate with each note. Its roasted 2A birdseye maple neck has a ’60-style “oval C” profile, compound-radius (9.5”-12”) round-lam rosewood fingerboard, and 22 narrow tall (6105) frets for exceptional play in all registers.

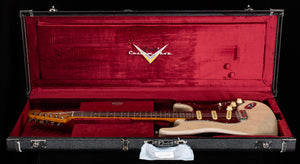

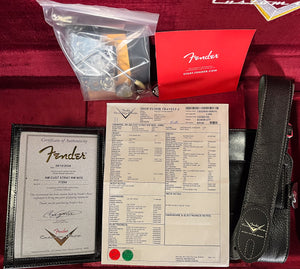

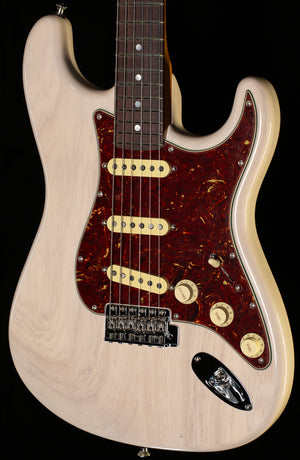

Custom Shop hand-wound ’64 pickups (with reverse-wound/reverse-polarity middle pickup) are connected to a five-way switch and vintage modified #2 wiring with tone-saver bleed, which features a master volume, tone #1 (neck and middle pickups), and tone #2 (bridge) with treble bleed (for keeping mids and rolling off highs without adding bass). Other features include a three-ply mint green pickguard, Custom Shop vintage synchronized tremolo, Sperzel® die-cast tuning machines with white pearloid buttons, bone nut and American Standard string tree. Includes deluxe hardshell case, strap, and certificate of authenticity.
| Body Shape: | Stratocaster® |
| Body Material: | 2-Piece Select Ash |
| Body Finish: | Lacquer |
| Neck Material: | 2A Roasted Birdseye Maple |
| Neck Shape: | 1960 Oval "C" |
| Scale Length: | 25.5" (64.77 cm) |
| Fingerboard Radius: | 9.5" to 12" Compound Radius |
| Number of Frets: | 22 |
| Fret Size: | Narrow Tall (6105) |
| String Nut: | Bone |
| Nut Width: | 1.650" (42 mm) |
| Neck Finish: | Nitrocellulose Lacquer |
| Fingerboard: | Round-Laminated Rosewood |
| Position Inlays: | Mother of Pearl Dot |
| Bridge Pickup: | Custom Shop Hand-Wound '64 Single-Coil Strat® |
| Middle Pickup: | Custom Shop Hand-Wound RWRP '64 Single-Coil Strat® |
| Neck Pickup: | Custom Shop Hand-Wound '64 Single-Coil Strat® |
| Controls: | Master Volume, Tone 1. (Neck/Middle Pickups), Tone 2. (Bridge Pickup) |
| Pickup Switching: | 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup |
| Pickup Configuration: | SSS |
| Bridge: | Custom Shop Vintage Synchronized Tremolo |

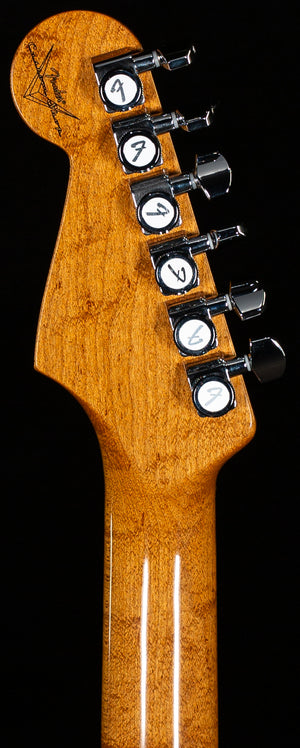

| Tuning Machines: | Sperzel® Die-Cast with White Pearloid Buttons |
| Orientation: | Right-Hand |
| Hardware Finish: | Nickel/Chrome |
| Pickguard: | 3-Ply Mint Green |
| Control Knobs: | Aged White |
| Switch Tips: | Vintage White |
| Strings: | Nickel Plated Steel (.010-.046 Gauges) |
| Included Accessories: | Deluxe Hardshell Case, Strap and Certificate of Authenticity. |
