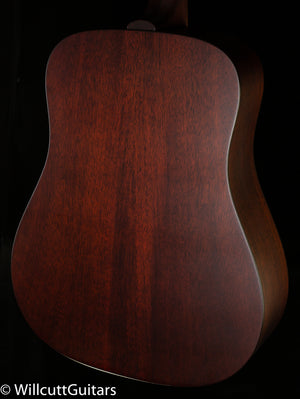

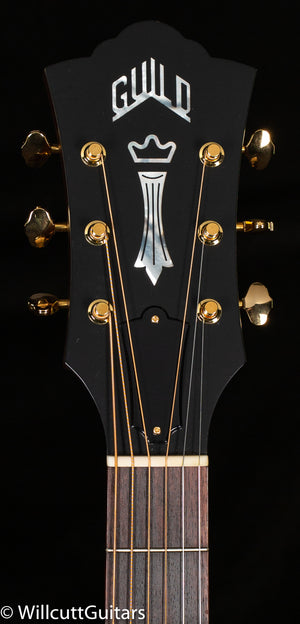

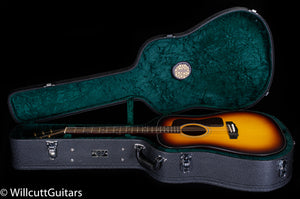

Brand new to the Guild USA line, the D-40 is perfect for players looking for that ultimate dreadnought sound. The classic wood combination of a solid Sitka spruce top and solid African mahogany back and sides provides remarkable volume, clarity and sustain. The D-40 features an East Indian rosewood bridge and fingerboard, premium 20:1 open-gear tuners, and a hand-cut bone nut and saddle. An elegant and thin satin varnish finish gives this guitar its familiar broken-in look and feel, while allowing the tone woods to reach their optimal sonic potential. The D-40’s timeless appointments include a vintage style rosette, tortoiseshell pickguard, white ABS binding, and Guild’s peak logo inlaid on the headstock. Each D-40 comes with a hand-signed, numbered certificate of authenticity, and ships with a Guild archtop wood case with a built-in Humicase® humidification system. Finish options include satin varnish in Natural, or Antique Burst with Cabernet back, sides and neck. A discreet, USA-made LR Baggs Element VTC pickup is also available (D-40E).
| Body Shape | D - Dreadnought |
| Body Top | Solid Sitka Spruce |
| Top Bracing Pattern | Scalloped X |
| Soundhole Diameter | 3 7/8" (98mm) |
| Rosette | ABS Ring |
| Top Purfling Inlay | Black and White ABS |
| Body Sides | Solid African Mahogany |
| Body Back | Solid African Mahogany |
| Body Binding | White ABS |
| Neck Material | Mahogany |
| Scale Length | 25 5/8" (651mm) |
| Neck Shape | C Shape |
| Nut Width | 1 11/16" (43mm) |
| Neck Thickness 1st Fret | 21mm |
| Neck Thickness 9th Fret | 22.5mm |
| Truss Rod | Dual Action |
| Truss Rod Wrench | 4mm Allen Key |
| Fingerboard Material | Indian Rosewood |
| Fingerboard Radius | 12" (305mm) |
| Fingerboard Inlays | Pearloid Dots |
| Frets Total | 20 |
| Fret Type | Jescar 43080 |
| Bridge Material | Indian Rosewood |
| Bridge String Spacing | 2 1/8" (54mm) |
| Bridge Pins | Ivory Colored Plastic |
| Saddle Material | Compensated Bone |
| Hardware Finish / Plating | N / A |
| Nut Material | Bone |
| Tuning Machines | Guild Deluxe Vintage Open Gear with Cream Oval Buttons |
| Endpin | Endpin Jack |
| Pickguard | Tortoiseshell |
